Allen 8300FR PC/ABS

Allen 8300 Fire Rated PC/ABS

8300FR made at Allen Extruders is a polycarbonate and ABS blend with very high impact properties, stiffness, heat resistance, and outstanding thermoforming characteristics that is able to achieve a flame retardant rating without the use of carcinogenic substances.

Flame Retardant Characteristics:

  • UL 94V0 rating in a wall thickness of .118 or greater Click here for examples of UL94-V0 rated enclosures.
  • High Heat Deflection Temperature of 222 degrees F @ 66 psi

This RoHS compliant PC/ABS blended sheet is stocked in various thicknesses at Envision and is our most common UL94-V0 rated material.

Allen 8300 is not for sale, but we'd be happy to fabricate a part using this material.

Data Sheet RoHS Yellowcard Number Flammability Rating
Allen 8300FR PC/ABS data sheet (PDF) Allen 8300FR PC/ABS RoHS letter (PDF) Allen 8300FR PC/ABS yellowcard (PDF) UL94V-0

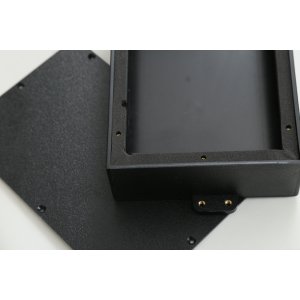

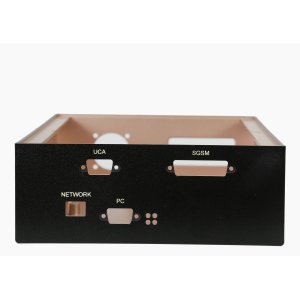

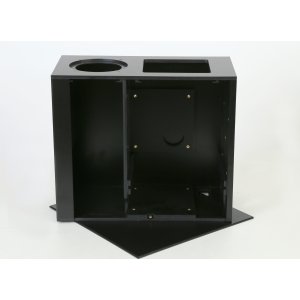

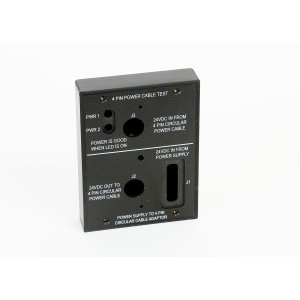

Gasketed custom plastic enclosure PC/ABS Custom fabricated speaker enclosure PC ABS UL94-V0 rated Custom PLastic Enclosure for Electronics emi copper coated shielding Plastic PCB Housing with digital printing custom UL94-V0 PC/ABS
